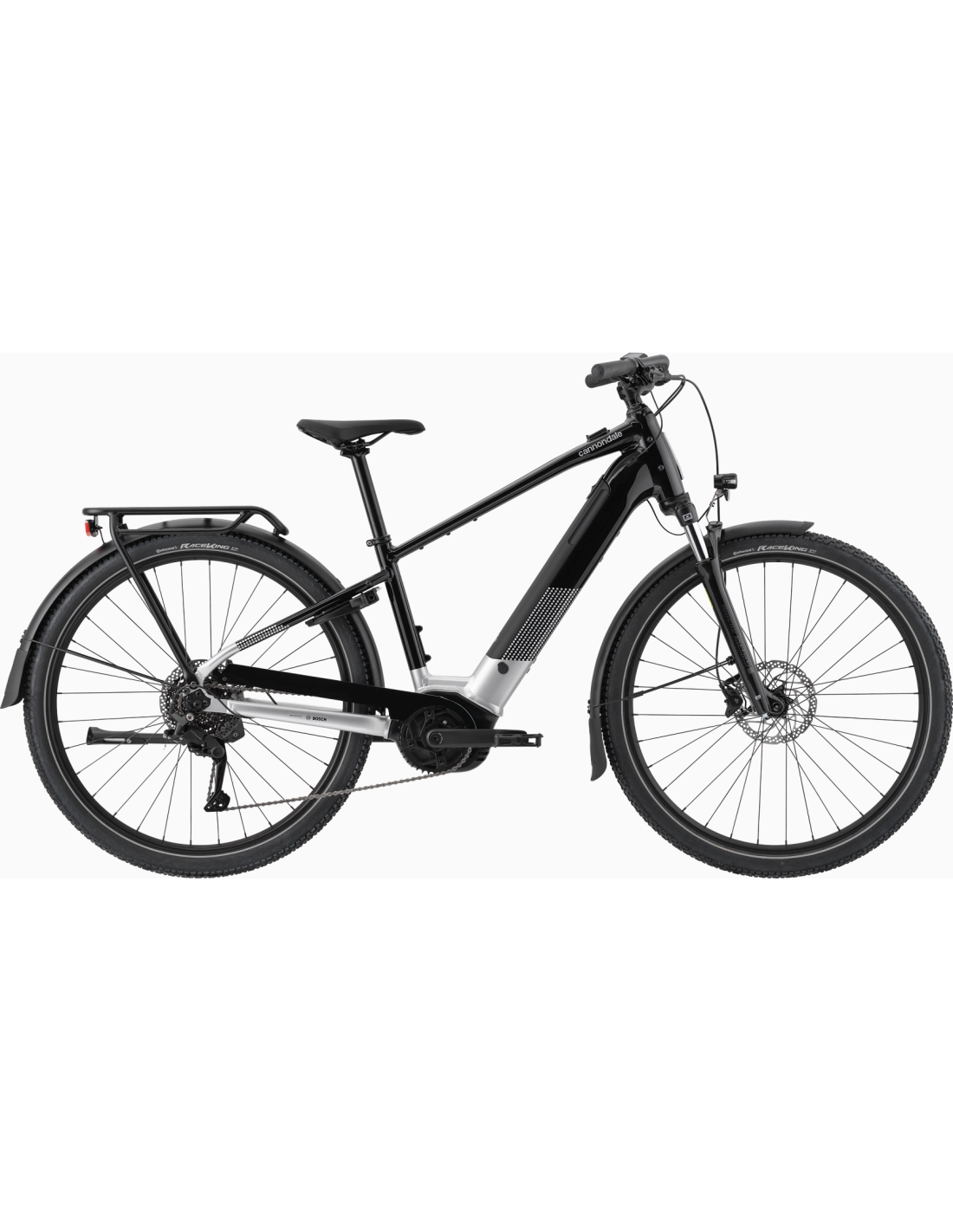

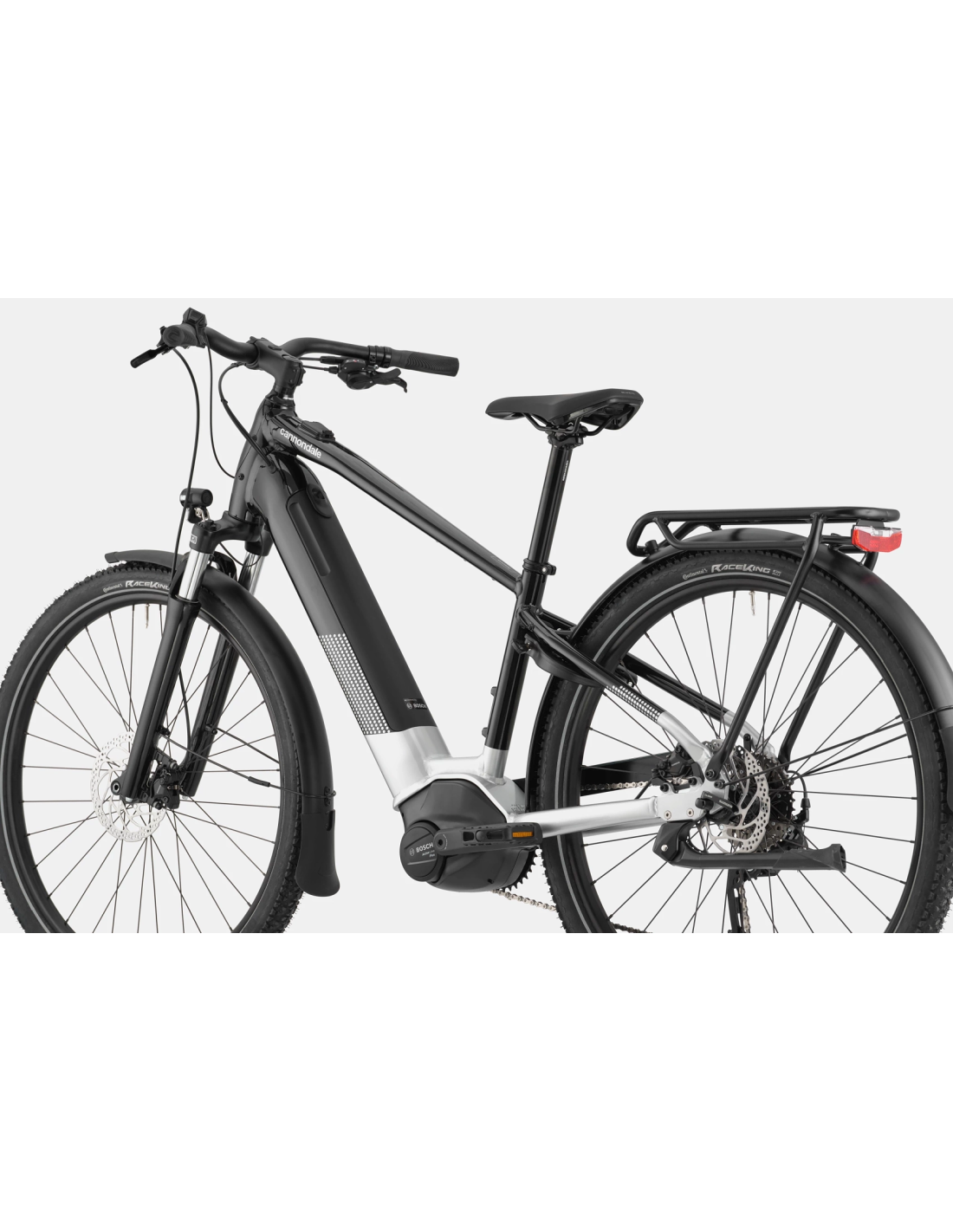

Ebike City Cannondale Tesoro X 3

Where it thrives

City streets and adventurous backroads

What it's built for

Commuting, touring, exploring

Highlights

• SmartForm C2 Alloy frame / bump-smoothing 63mm travel suspension fork
• Shimano CUES 9-speed shifting & hydraulic disc brakes
• Bosch Smart System - Active Line Plus drive-unit / 500Wh battery / Range: up to 113 km

FRAMESET

Frame: SmartForm C2 Alloy, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection

Fork: SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset

Headset: Semi-Integrated, Tapered; 1-1/8"-1-1/2"

E-SYSTEM

Drive Unit: Bosch Active Line Plus, Smart System (25 km/h)

Battery: Bosch PowerTube, 500Wh

Charger: Bosch 2A

Display: Bosch Purion 200

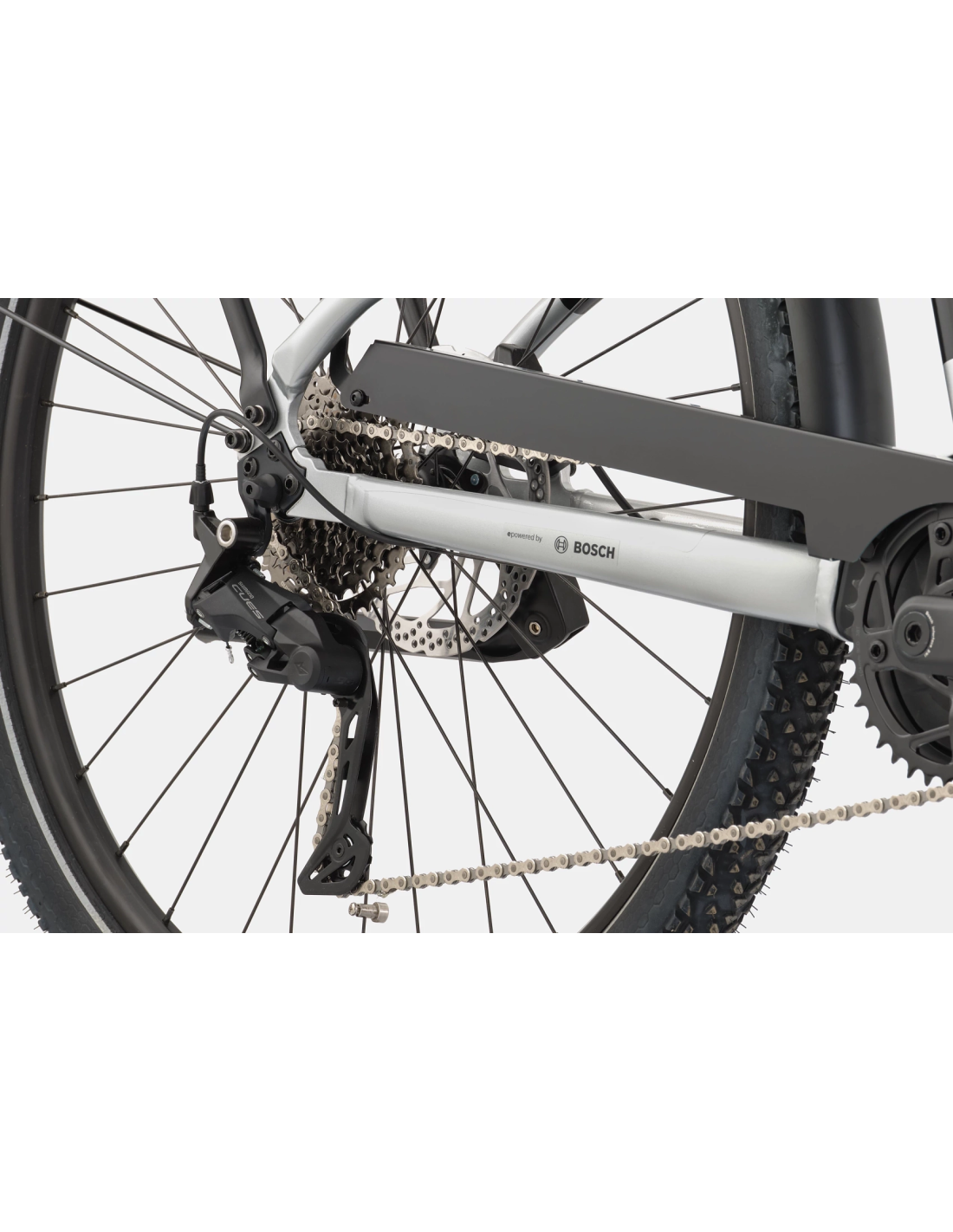

DRIVETRAIN

Rear Derailleur: Shimano CUES 4020

Shifters: Shimano CUES 4000, 9-speed

Chain: KMC E11

Crank: FSA for Bosch

Rear Cogs: Shimano CUES 400, 11-36, 9-speed

BRAKES

Brakes: Shimano MT200 hydraulic disc, 180/180mm RT30 rotors

Brake Levers: Shimano MT200 hydraulic disc

WHEELS

Rims: Alloy, double wall, 32 hole, 25mm internal width, disc-specific

Spokes: Stainless Steel, 14g

Tire Size: 2.2

Wheel Size: 29

Hubs: (F) Shimano MT400B, 110x15mm thru-axle / (R) Shimano UR600, 135QR

Tires: Continental Race King, 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-LG)

COMPONENTS

Handlebar: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm

Stem: Cannondale 3 with Intellimount, Alloy, 31.8mm clamp

Grips: Cannondale Ergo Fitness Dual Density, Lock-on

Saddle: Selle Royal Vivo Active

Seatpost: Cannondale 3, 6061 Alloy, 31.6

EXTRA

Extra 1: Integrated headtube reflector, Axa Compactline 35E front light, Axa Blueline rear light, Abus framelock (key-matched with battery lock), Tubus rear rack (25kg, Racktime compatible), full-coverage fenders
